LIGHTEN UP YOUR DAILY RIDE

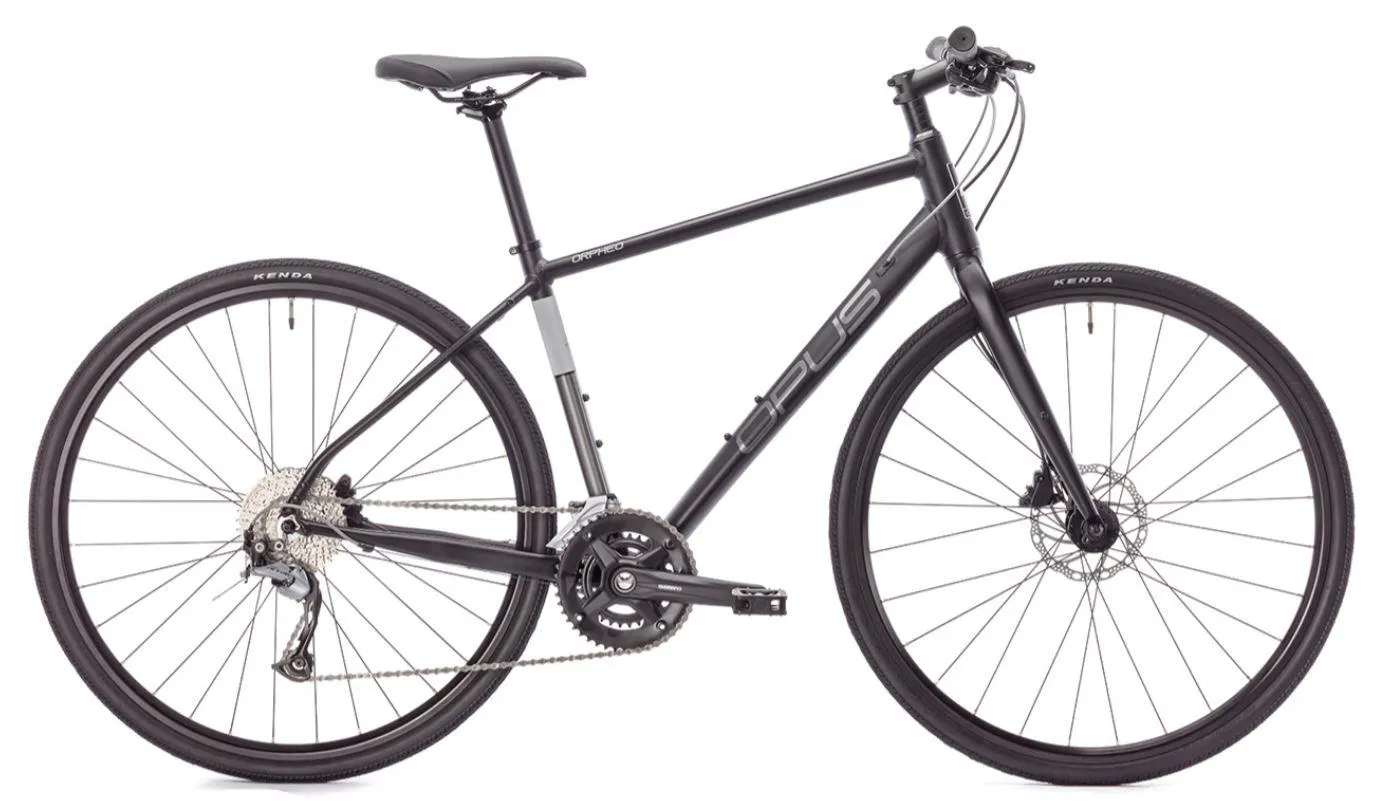

With an optimized 2X drivetrain, the Orpheo 2 gives you the light weight you want without giving up the gear range you need. Whether you’re looking to accelerate your commute, run errands or chill at a favorite weekend café, the Orpheo 2 is your high performance urban companion.
· Sporty Progressive Geometry for performance and comfort
· Alloy frame and fork
· Shimano 2x9 drivetrain
· Powerful hydraulic disc brakes
· Internal cable routing
Technologies:
META 20 ALLOY: Double butted 6061 tubing.
PROGRESSIVE GEOMETRY: Even progression between sizes eliminating gaps, yielding a wide range of possibilities for a custom-like fit.
OPTIMIZED GEARING: Tailored gear range for its specific use; benefiting from the maximum number of useable gears.
ALLOY FORK: Lightweight aluminum fork for better handling and weight savings.
Specifications:
| FRAME | Meta 20 aluminum |
| FORK | Aluminum tapered 1-1/4 to 1-1/8 in |
| WEIGHT (LB) | 25 |
| SIZES | XS-S-M-L-XL |
| COLOR(S) | Space Black |
| SHIFTERS | Shimano Alivio 2x9 |
| FRONT DERAILLEUR | Shimano Acera |
| REAR DERAILLEUR | Shimano Acera |
| BRAKES | Tektro HD-R280 hydraulic disc |
| BRAKE LEVERS | Tektro |
| CRANK | Shimano FC-MT210-2 |
| CHAINRINGS | 46-30 |
| BOTTOM BRACKET | Shimano sealed cartridge |
| CASSETTE | Shimano 11-36 |
| CHAIN | KMC-Z9 |
| HEADSET | FSA Orbit integrated sealed |
| HANDLEBAR | Alloy 12 mm rise |
| STEM | Promax |
| GRIPS/TAPE | Velo ERGO dual density |
| SADDLE | Opus City |
| SEATPOST | Promax alloy 27.2 x 300 |
| WHEELS/RIMS | Weinmann X-Star 19D |
| HUBS | Joytech |
| TIRES | Kenda Kwick Tendril 700 x 35 |
| PEDALS | FPD NW-247 |
| OTHER | Front and rear-rack and fender ready |

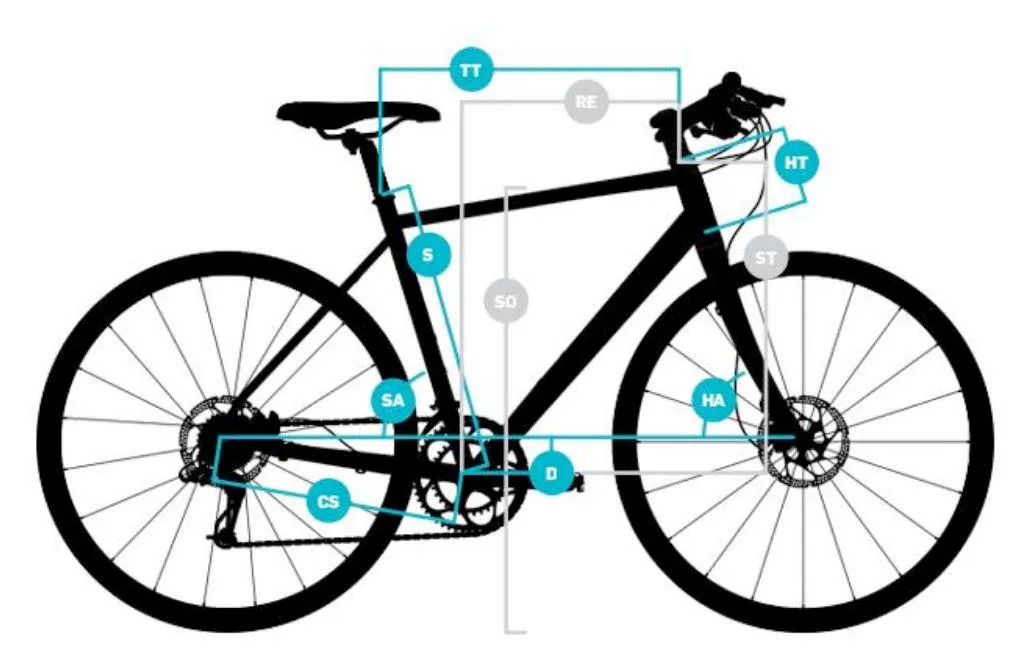

Geometry:
|
| XS | S | M | L | XL |
| Riders's height |
| ||||
| ± 5cm | 155 | 164 | 173 | 182 | 191 |
| ± 2" | 5’1” | 5’4.5” | 5’8” | 5’11.5” | 6'3" |
| Size (cm) | 38 | 42 | 460 | 55 | 54 |
| S - Seat tube (mm) | 380 | 420 | 460 | 500 | 540 |
| TT - top tube (mm) | 529 | 547 | 568 | 589 | 611 |
